4. DIY DSLR Wooden Shoulder Rig
1 year ago

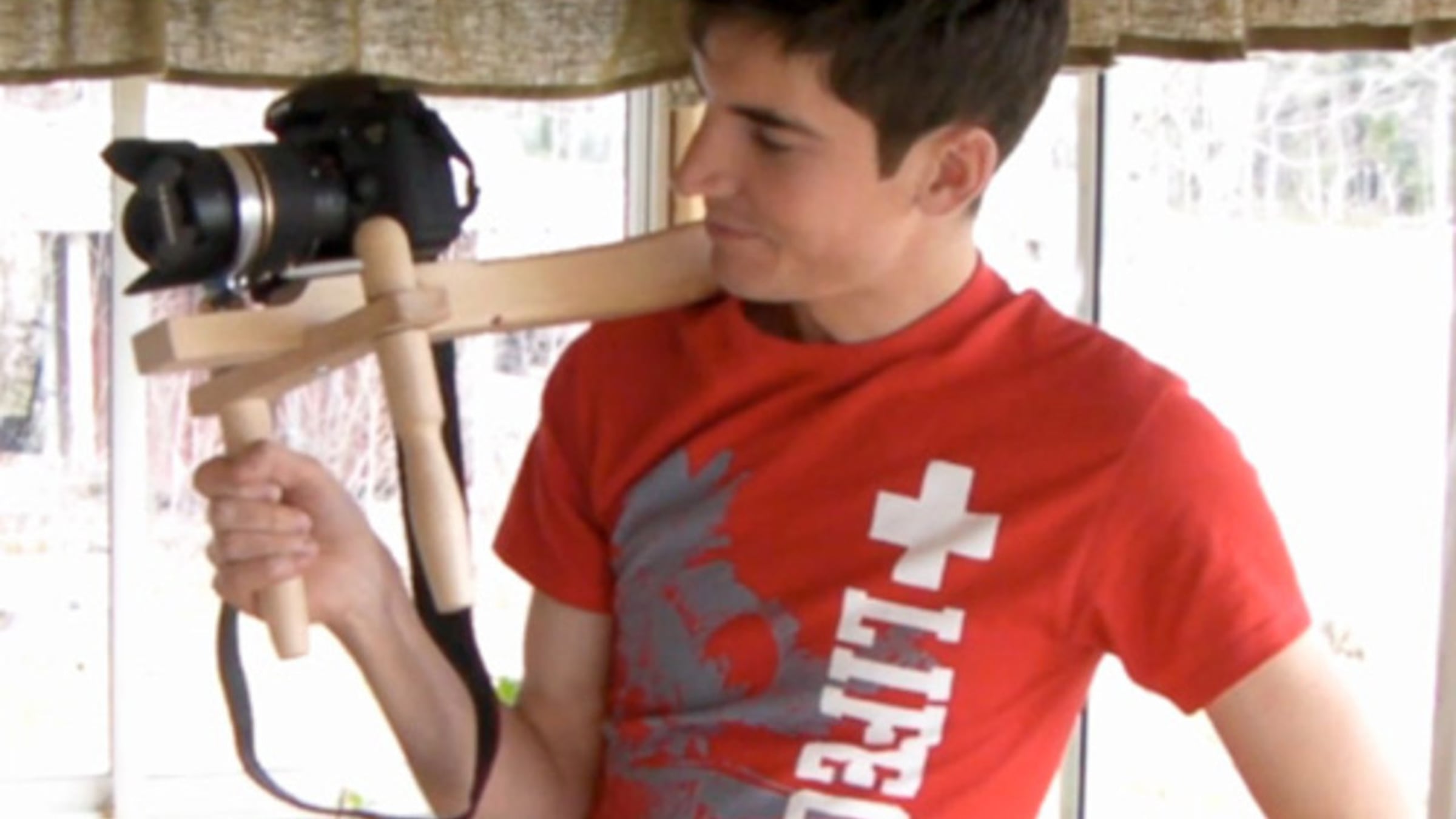

A wooden shoulder rig for a DSLR videographer. Two handlebars, one can change the focus.
For more info please go here:
athan.se/diy-shoulder-rig/
Sample video: vimeo.com/11535111
UPDATE 2011/06/19
Have replaced the hose clamp for a fixed metal ring that slides in over the lens when zoomed in, then matches focus ring perfectly when pushed toward it. A big time saver! Check it out on my website!
For more info please go here:
athan.se/diy-shoulder-rig/
Sample video: vimeo.com/11535111
UPDATE 2011/06/19
Have replaced the hose clamp for a fixed metal ring that slides in over the lens when zoomed in, then matches focus ring perfectly when pushed toward it. A big time saver! Check it out on my website!
-
