The 143-1 has been nothing but fun since it got here. I've spent the last hour using it as a sequencer of sorts for a self-oscillating Frostwave filter. Instant goth hits!

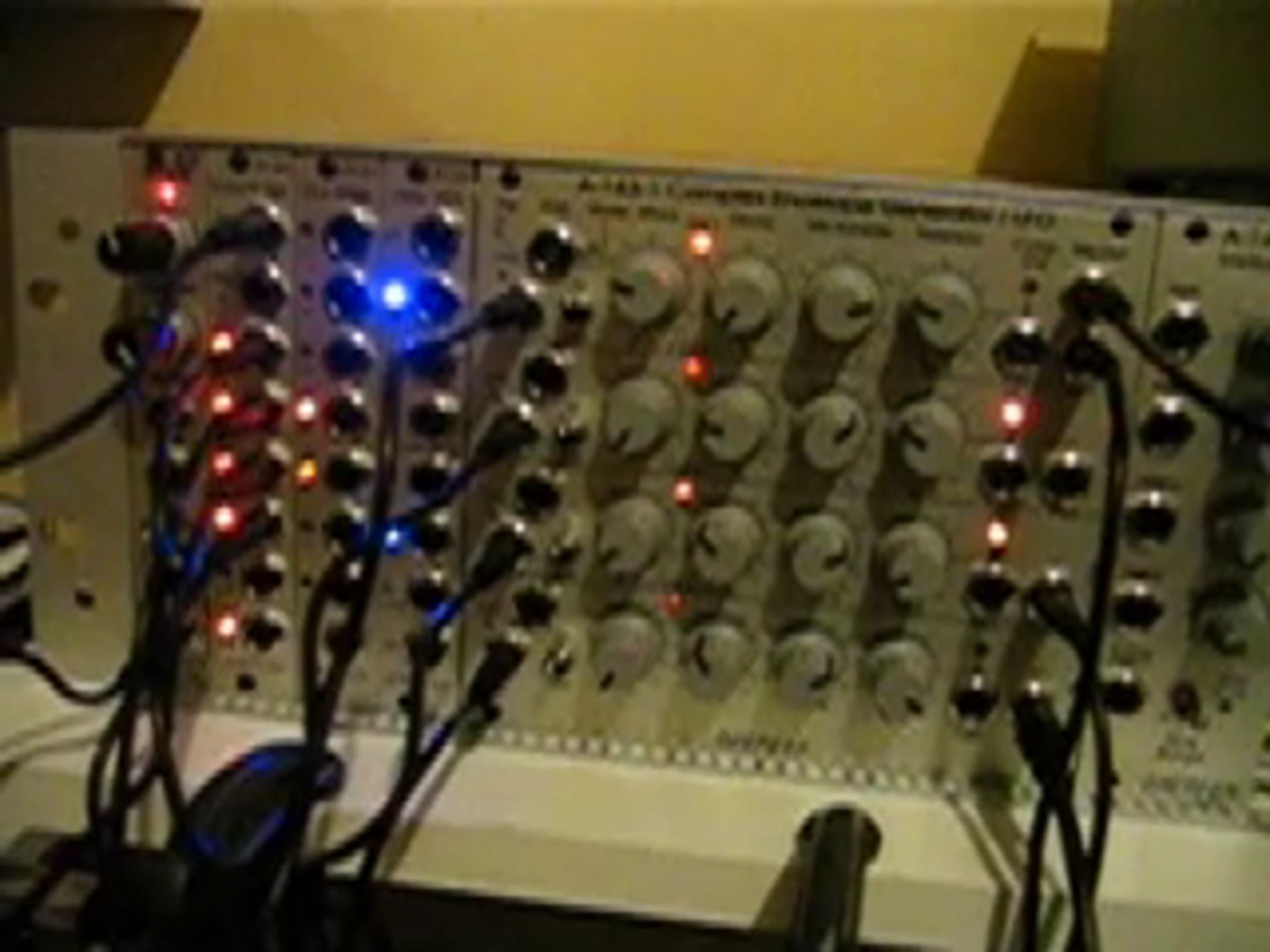

In this patch, the Plan B Elf LFO's square out is clocking a Doepfer A-160 Clock Divider:

The /2 output is gating the first channel on the A-143-1.
The /4 output is gating the second
The /8 output is gating the third
The /16 output is gating the fourth

The Envelope from the 143-1's first channel is controlling the Low Pass Resonance on a Frostwave Resonator.

The Envelope from the third channel is controlling the High Pass Frequency on the Resonator

The Envelope from the fourth channel is controlling the Low Pass Frequency on the Resonator

The Mix output from the 143-1 is sending CV to a 132-3.

The Resonator is set to self-oscillate, and its Output is sent to the 132-3's Input.

The Opus 3 and the Rogue are a little out of tune, but otherwise dry.
