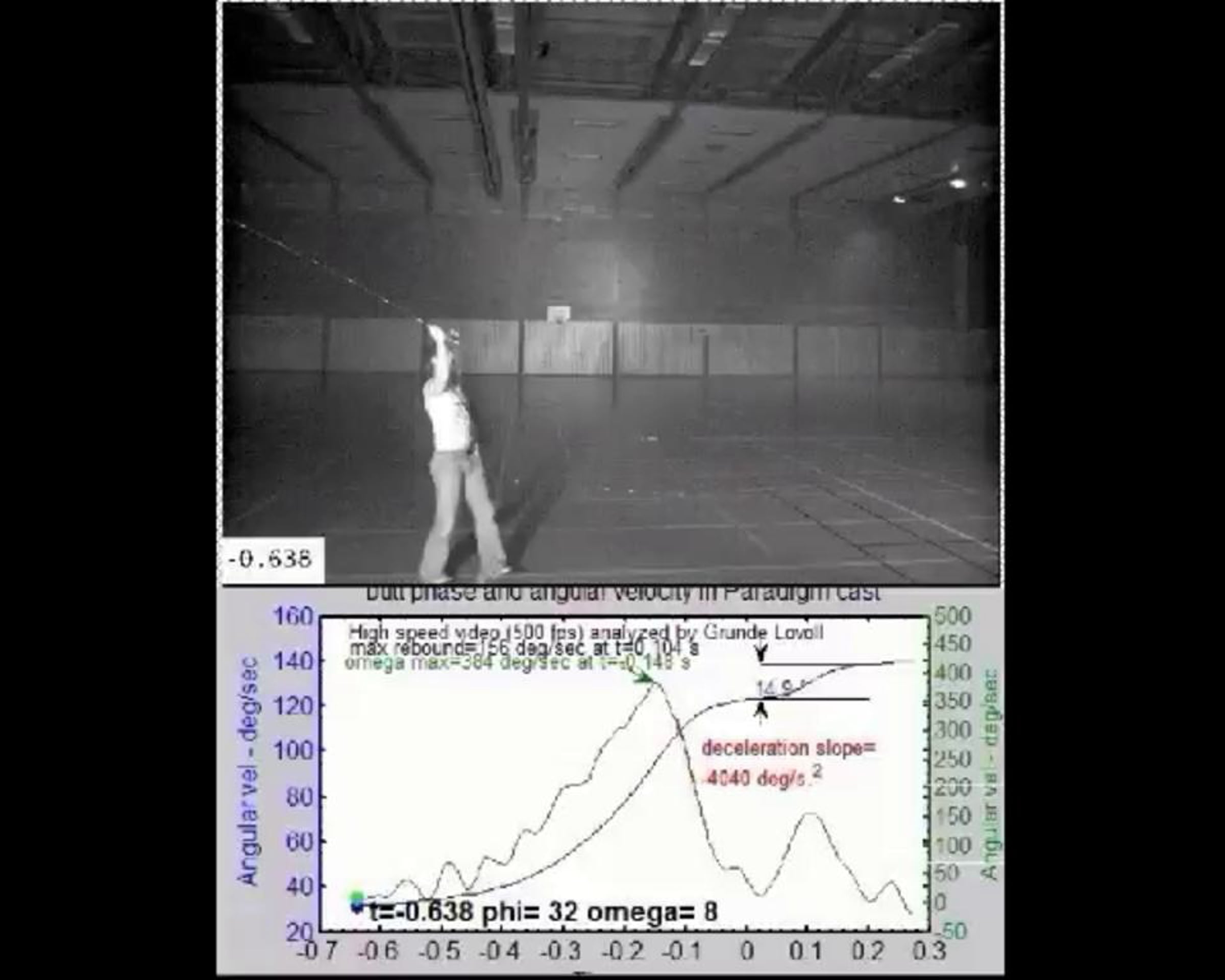

The data for this angular velocity curve was calculated by Grunde Lovoll from the high speed video he recorded for Mathias Lilleheim's 10 meter cast using a 5 wt Paradigm rod. My thanks to Grunde for sharing that extensive data set.
This shows the peak of the rebound hump in this cast at t-.104 occurred shortly after the MCF (t=.072 s) when the rod tip was going back to RSP2. The additional rod rotation associated with the rebound hump was around 15 degrees.
