[Tutorial] Realtime Stone with detail maps in Blender on Vimeo

00:00

2681

See all Show me

6. Blender Ocean Sim /Cycles Test

by Pelle Johnsen

2 months ago

5. [Tutorial] Blender: A static Gingerbread Man

by Pelle Johnsen

4 months ago

4. [Tutorial] Quick FPS setup with physics for Blende…

by Pelle Johnsen

6 months ago

3. Maya to 3dviewr

by Pelle Johnsen

9 months ago

2. [Tutorial] Realtime Stone with detail maps in Blender

by Pelle Johnsen

2 years ago

1. Realtime Stone with detail maps in Blender

by Pelle Johnsen

2 years ago

Show creation of a 'realtime' stone in Blender using the standard color and normal maps as well as detail maps for color and nomals. The whole process is covered including:

[01:07] photo texture preparation in gimp

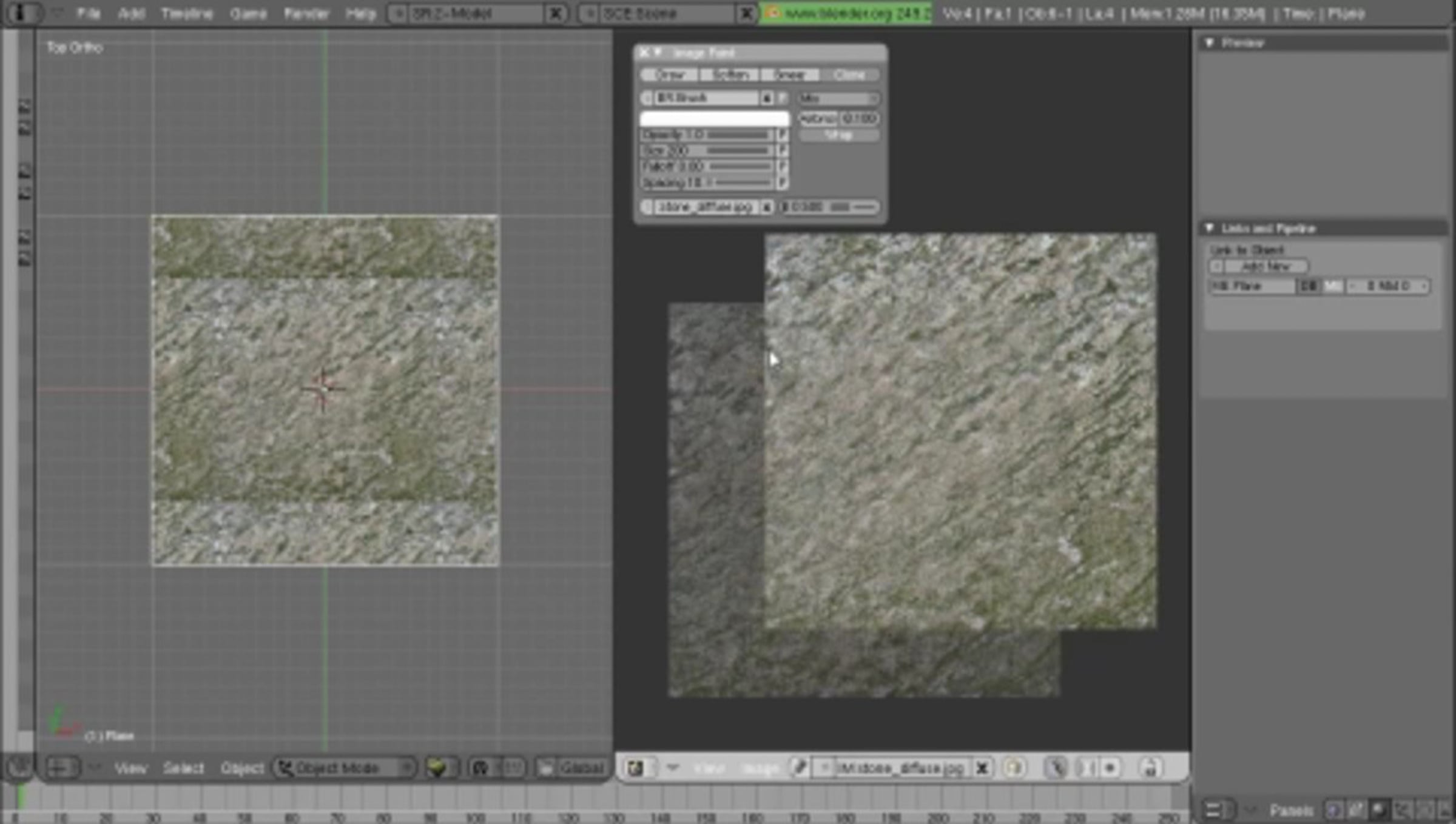

[04:00] tilable texture painting in blender
[07:50] modeling and basic sculpting
[11:00] uv unwrapping
[15:30] projection painting to fix texture seams
[22:07] material and detail color map
[28:15] sculpting and displacement mapping
[31:50] normal map baking
[36:45] detail normal map

You can also download a zip-file of the project here: pellej.com/wp-content/uploads/stone.zip
