These mechanical assemblies are designed to dampen vibration affecting the platform on which a video camera is mounted. The active damper effectively cancels out resonant vibration.
In the first example, a damper works on a platform with a magnetic cushion.
In the second example, one end of the rocker arm is connected to a vibration generator, and a damper with a reaction mass is mounted on the other end of the rocker arm.

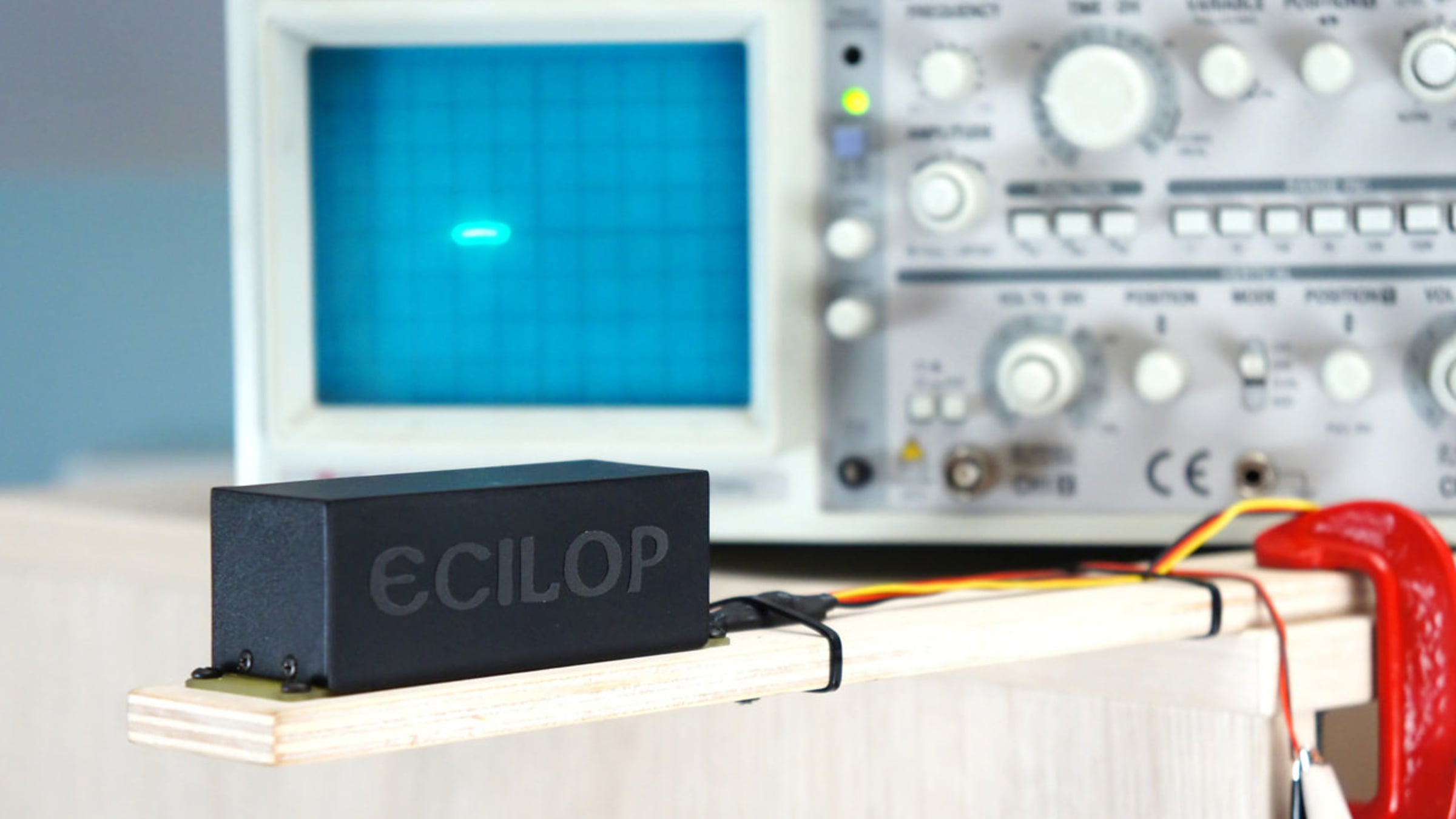

In the third example, a damper with a reaction mass is mounted on any platform and dampens vibration. The accelerometer, controller, and actuator are housed in a single box.
