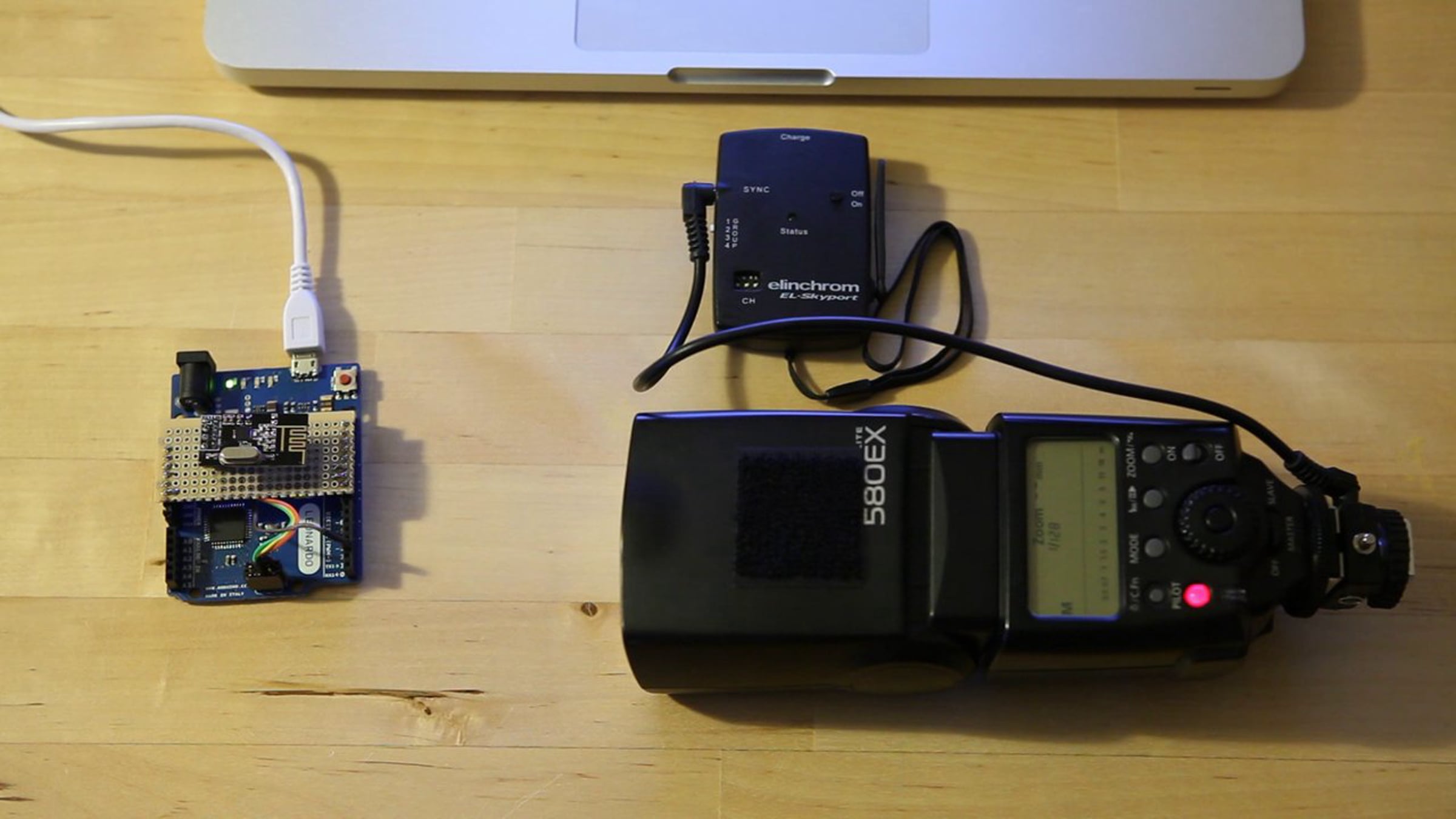

This is a proof of concept where an Arduino Leonardo equipped with a nRF24L01+ board triggers an Elinchrom EL-Skyport receiver. The Leonardo configures the nRF24L01+ with the right parameters after booting and then transmits a trigger message every 500 ms via 2.456 GHz. After turning on the EL-Skyport receiver, the flash is then fired ever 500 ms. A full description of the setup and also the source code is available here: infar.be/index.php?/archives/1005-Elinchrom-EL-Skyport-triggered-by-an-Arduino.html
