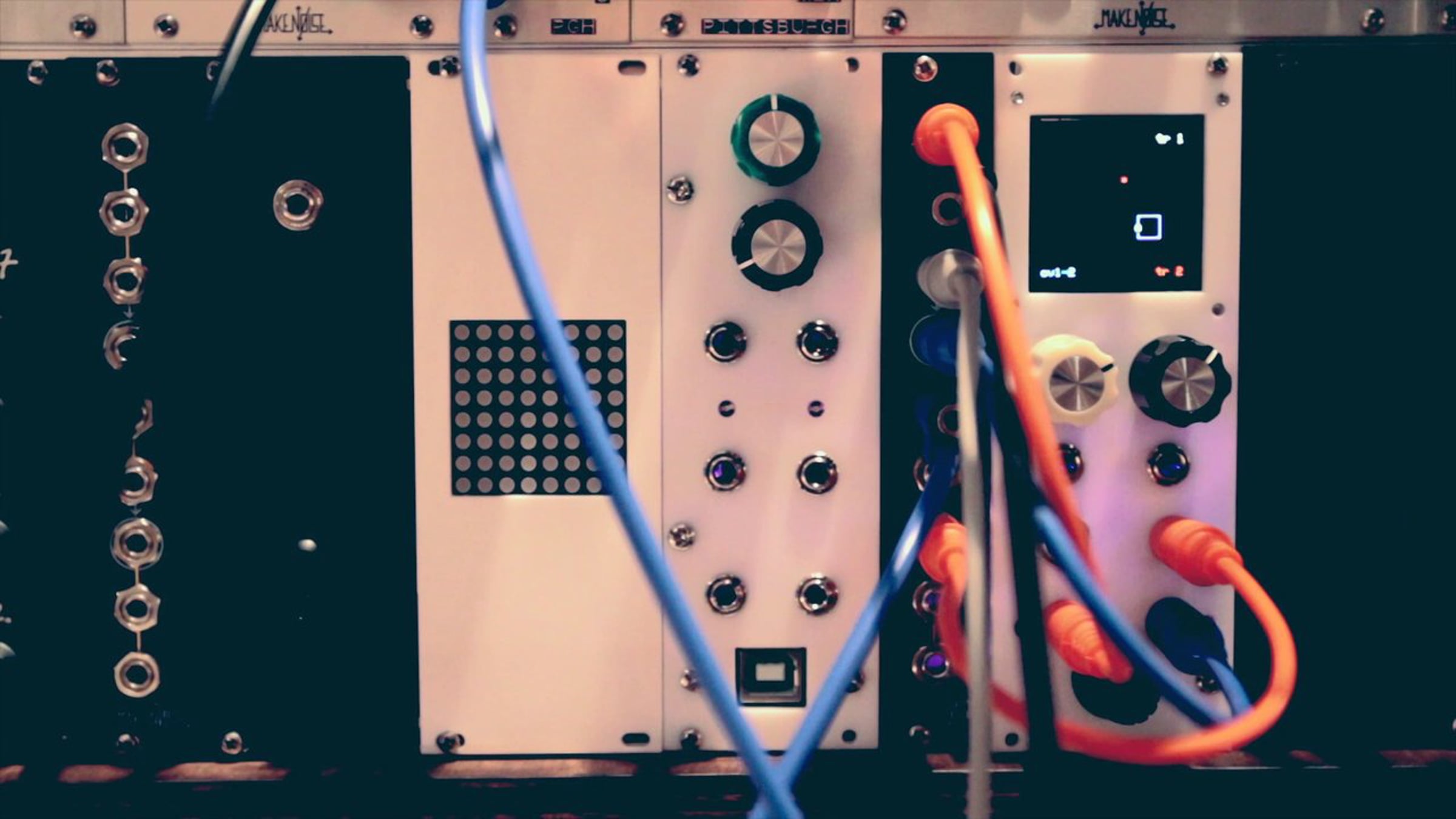

Graphic CV controller - Eurorack

Eurorack Module to explore control voltage manipulation trough graphics.

This is the first sketch that send trigger out based on a PONG inspired sequencer

1,2,3 or 4 trigger out, each one is represented by a colored ball.

Every time the ball hit the edge of the screen or the square the ball change direction.

This sketch allowed for exploration of pattern.

X & Y coordinate of the Square can be modify with the 2 Potentiometers or by patching 1 or 2 CV IN

Specs:

-OLED Screen 128x128 Pixels

-Build around Arduino

-4 Trigger OUT

-2 CV IN

-1CV OUT

-2 Potentiometer

-1 Rotary Encoder
