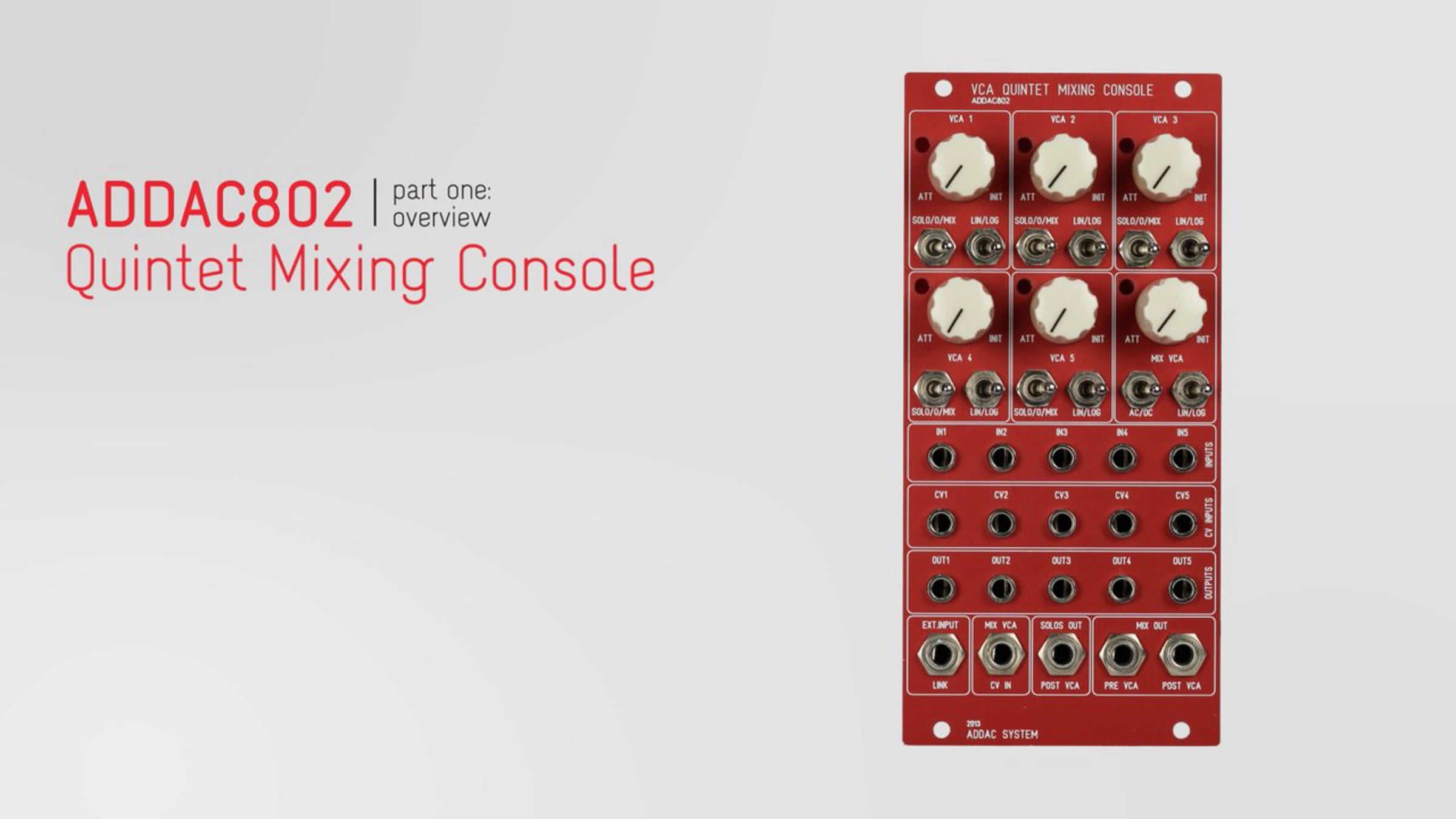

ADDAC802 VCA Quintet Mixing Console

Features:
5 Channel Mixer
1 Master Output
External input into the Mix channel for daisy chaining.
2 independent mixing paths, Solo and Mix
Mix Output includes a 6th VCA with Pre and Post outputs

Each of the 5 channels has:
. VCA with initial Knob
. Monitor LED
. Independent output
. Linear or logarithmic control
. Solo/Off/Mix switch that routes their audio to the Solo Channel or the Mix channel. In Off position the VCA does not go to the outputs.

All 5 VCA's can be used separately for different sources (audio or cv) or mix in 2 different chains.

Outputs:
. 1 Pre Master VCA output
. 1 Post Master VCA output
. 1 Solo output

The Solo line is also intended for Pre Listening purposes, using this output to connect your headphones through some headphone amplifier module.

More info:
addacsystem.com/product/addac802-vc-mixer#

Video by LIN/LOG
lin-log.de
