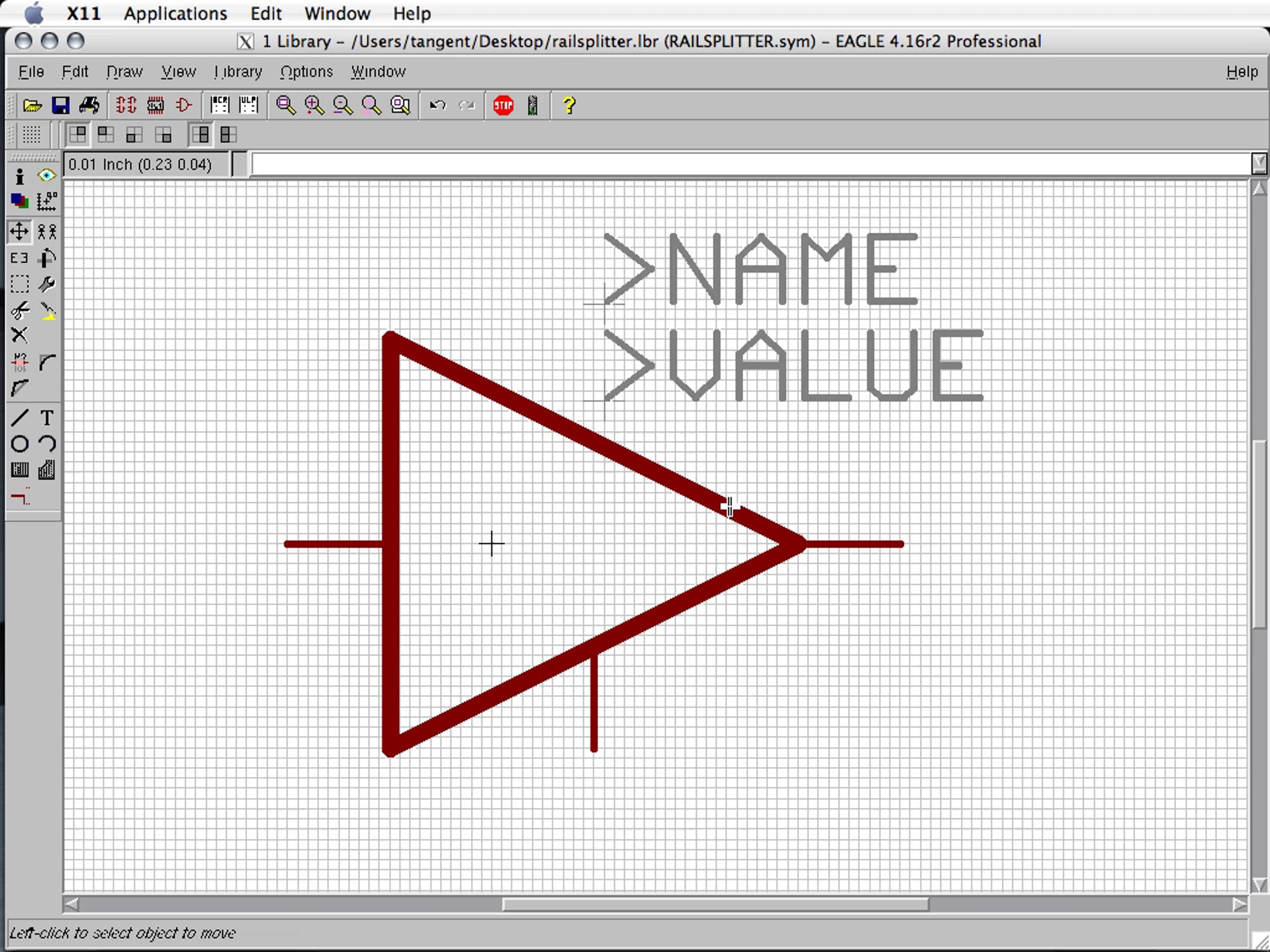

EAGLE's libraries, though impressively large, don't cover everything. In any significant project, you're probably going to have to create at least one custom part. In this first of a series of three videos on this topic, I show how to create a custom schematic symbol, using the TLE2426 as an example.
