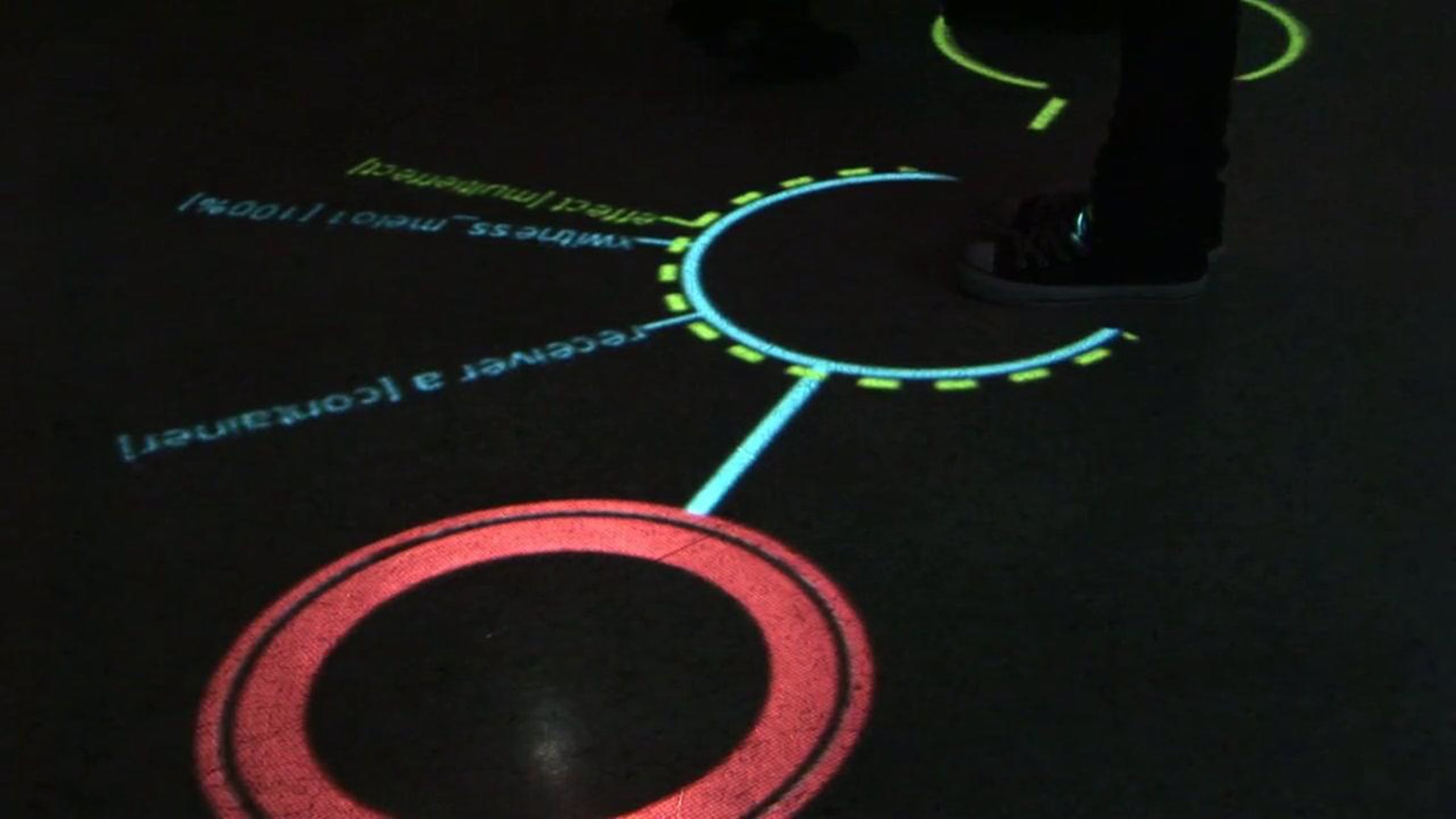

Music and visuals controlled by tracked people. The user can choose between different roles (beat = red ring, melodies = blue ring, effect = green ring or instrument switch = orange ring). Together they control a music program over midi signals.

The midi-controls are freely configurable via xml file. The system also supports midi-files to map onto tracked objects allowing them to play and switch melodies.

The tracking system is scalable, e.g. the system also supports a reactable as input and supports up to 20 cameras (each camera connected to a tracking-server which sends tracked data to the main application over TCP). The tracking system is able to use AR ToolKit or reacTIVision.

For visual output the main application works as a server for VVVV, Processing or Java clients allowing them to display objects, connections and played midi-notes.

The prototype uses four cameras as input and two Processing clients as output (ground and visuals projection).

Main application and tracking system were developed in C++.

Student project at h-da 2010.
