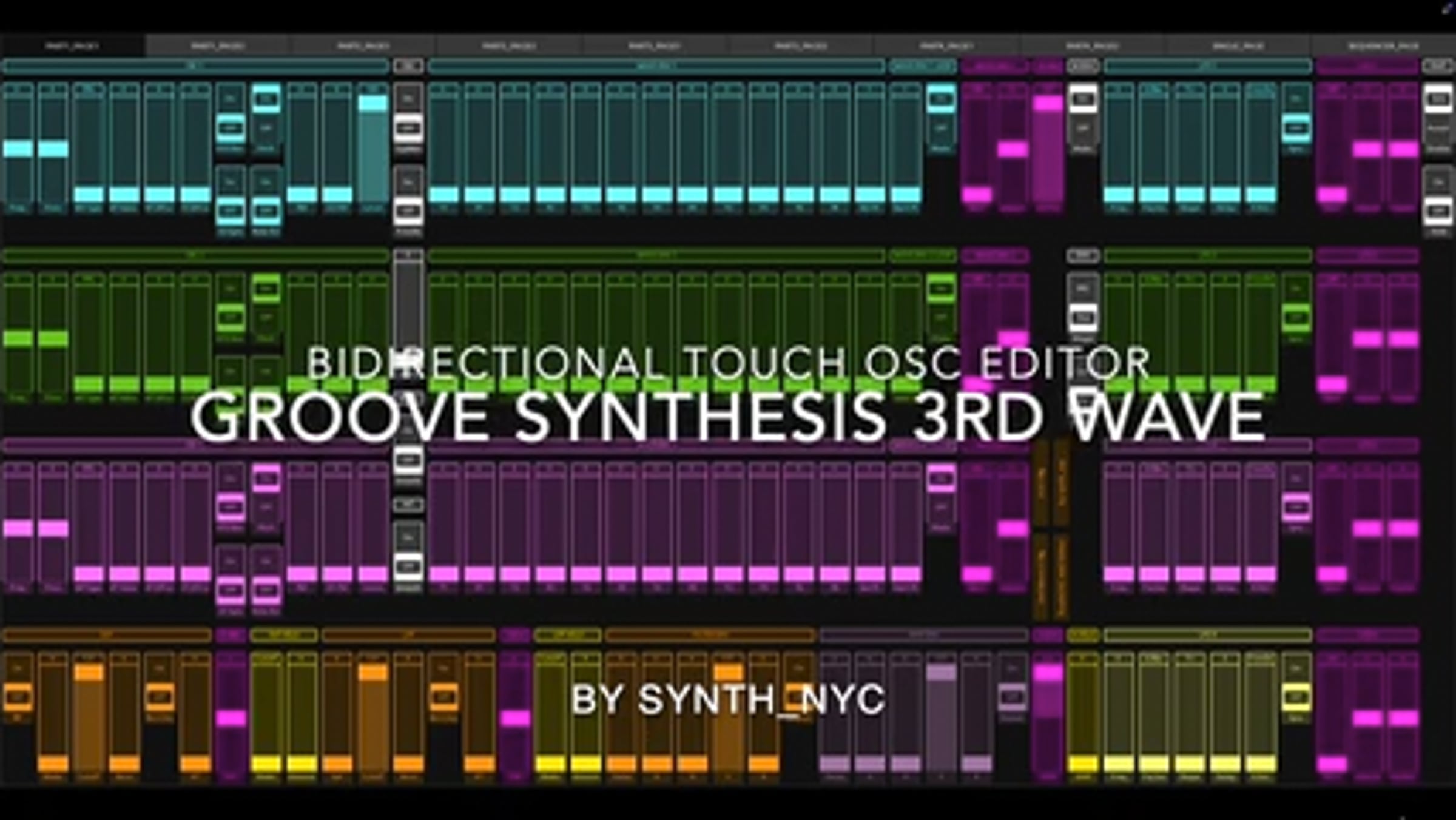

Groove Synthesis 3rd Wave TouchOSC Bidirectional Editor v5.0

GENERIC FEATURES:

- Display parameter Name and Value

- Double click a slider or button to reset it to a default value

- MIDI data rate efficient: only sends a MIDI message if the parameter value is incremented or decremented by 1

SPECIFIC FEATURES (FW v1.8gRC25):

- 2 Editor Pages per 3rd Wave Multi parameters (total of eight Pages for the four 3rd Wave Parts)

- 1 Editor Page for 3rd Wave Single parameters

- 1 Editor Page for 3rd Wave Sequencer parameters

- All 1385 Program (All 4 Parts Multi + All Single + All Sequencer) parameters implemented in the editor. Program parameters are bidirectional using NRPN and SYSEX

- MIDI Channel selection slider

- Bank (change) + Program (change) selection slider + buttons

- Buffer Request, Buffer Init, Buffer Write and Program Write buttons using SYSEX

WORKFLOW 1 SINGLE EDITING FROM PATCH (starting at 00:05 in the video above):

- Select a Bank & Program

- Press Buffer Request to load it to the editor

- Start editing (the loaded patch) on the editor (the Patch is edited in the synth buffer)

- Naming

- Press Buffer Request to record it in your DAW / SYSEX librarian; or save it manually in the synth

- Select a Bank & Program (Optional)

- Press Program Write to save it in the synth

WORKFLOW 2 SINGLE EDITING FROM SCRATCH (starting at 02:20 in the video above):

- Press Buffer Init to send an init patch to the synth buffer

- Start editing (the init patch) on the editor (the Patch is edited in the synth buffer)

- Naming

- Select a Bank & Program (Optional)

- Press Program Write to save it to the synth

FEATURE REQUESTS / BUG FIXES:

- Implement the Global parameters Get / Set via SYSEX / NRPN

- Fix the bugs (all related to the MIDI implementation) Groove Synthesis and I have been discussing this week 6/30/2025

EDITOR QUESTIONS?

- NB: The editor is a TouchOSC template (.tosc file), it requires a TouchOSC license (https://hexler.net/touchosc)

- If Groove Synthesis or anyone has some questions, please contact me via my website:

https://synthnyc.com

- Not for sale / no licensing at this point
