Python tool for the interactive visualization of the large-scale environment around galaxies on the 3D space

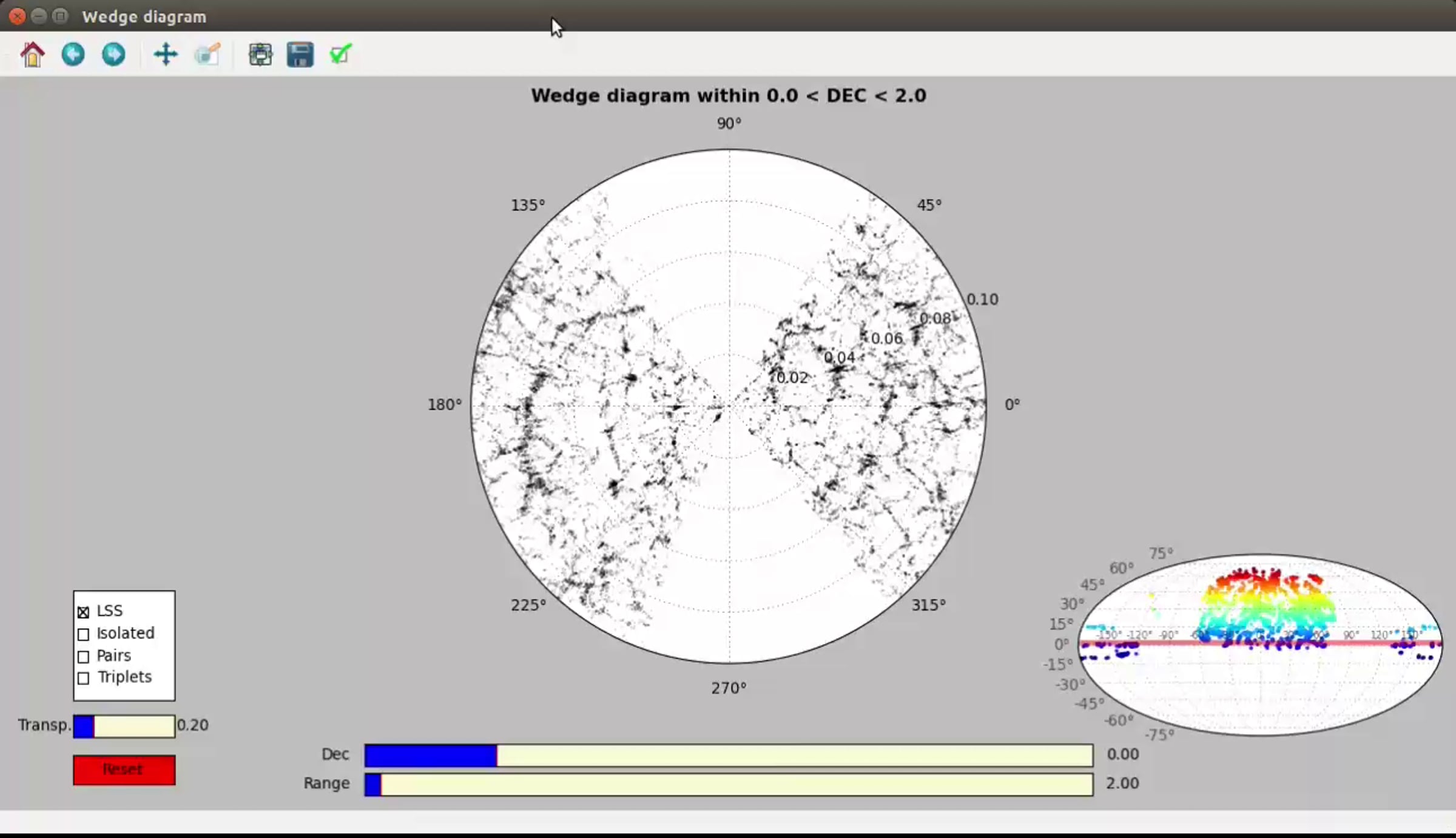

Interactive 3D visualisation software: wedge diagram. Wedge diagram for LSS galaxies (black points) within deg_min and deg_min + delta_deg degrees in declination as it is shown in the text in the upper part of the screen. The showed declination range can be changed using the blue bars in the lower part of the screen. As for the Mollweide projection, red circles represent isolated galaxies within the same declination range. Isolated pairs and isolated triplets can be shown by selecting them in the samples box. To guide the eye, a Mollweide projection, for LSS galaxies in the redshift range $0.030 < z < 0.035$, is shown in the right lower part of the figure. The red stripe in the Mollweide projection corresponds to the selected declination range in the central wedge diagram. One can return to the default values with the reset button.
For more information and/or to obtain the code visit github.com/margudo/LSSGALPY
