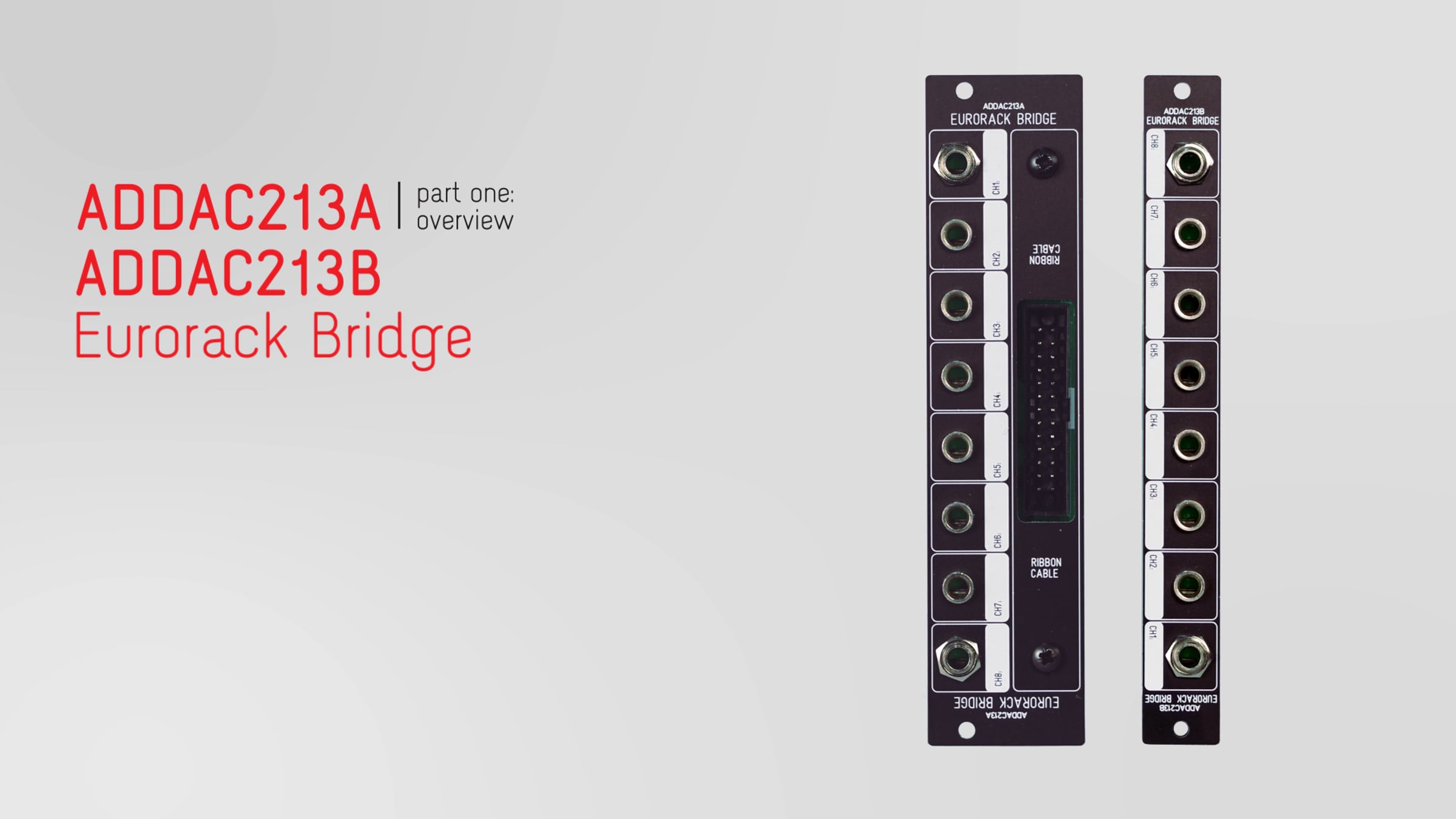

This is our Eurorack Bridge system!
A pair of ADDAC213As acts as a simple one-cable bridge between different cases. By itself the ADDAC213As can send/receive 8 CV or audio signals between your cases, but can be expanded to bridge two cases for up to 24 signals at the same time.
Use a pair of ADDAC213As to send & receive 8 CV or audio signals between distant points in your case, between two separate cases, or between your case and a friend's case.
Less clatter, less spaghetti, faster connection!
There’s nothing better than being able to connect that controller skiff with just one cable to your main system. At a gig, in the studio, when jamming with a friend, give yourself a gift by grabbing a pair of ADDAC213As.
The modules can be installed in normal position or a 180 degree position to fit any need and any case design.
Expansion by the ADDAC213Bs
Each ADDAC213A module can be connected through a ribbon cable connection on its backside with up to two ADDAC213Bs. Each ADDAC213B module added expands the channels options of the ADDAC213A by adding 8 more channels.
With two 2 ADDAC213Bs connected to each ADDAC213A module, you’ll have a total of 24 channels going between your cases with a simple one-cable bridge.
Between the ADDAC213A pair and the ADDAC213B, your cases never looked so elegantly connected together!
The ADDAC213As are always sold as a pair of 2 modules and an included ribbon cable (50cm or 100cm ribbon cable, or custom sizes available upon request).
Each module can be installed in normal position or at 180 degrees.
. Width: 6 HP
. Depth: 2.4 cm
. Passive / Does not draw current
. Ribbon Cable: 50cm or 100cm ribbon cable (custom sizes available upon request)
