This work is published in ACM SIGCHI 2018. It is a 2018 winner of Ars Electronica STARTS PRIZE and is invited for an exhibition at Linz, Austria during Ars Electronica 2018.
Official project page: morphingmatter.cs.cmu.edu/paper-actuator/
Ars Electronica STARTS PRIZE page: starts-prize.aec.at/en/printed-paper-actuator/
Paper is a lightweight, abundant, and bio-degradable material. In addition, paper affords rich physical interactions including folding, printing, and painting on its surface. In recent years, paper has become increasingly interesting as a material in new interface design including paper robots, paper power generators, electronic pop-up books, animated origami, foldable artifacts, and so on. While many of these paper systems require customized actuation mechanisms, a missing component for paper-based interfaces is a low-cost, easy to fabricate, flexible to customize, reversible, and electronically-controllable actuator that is embedded within the paper.

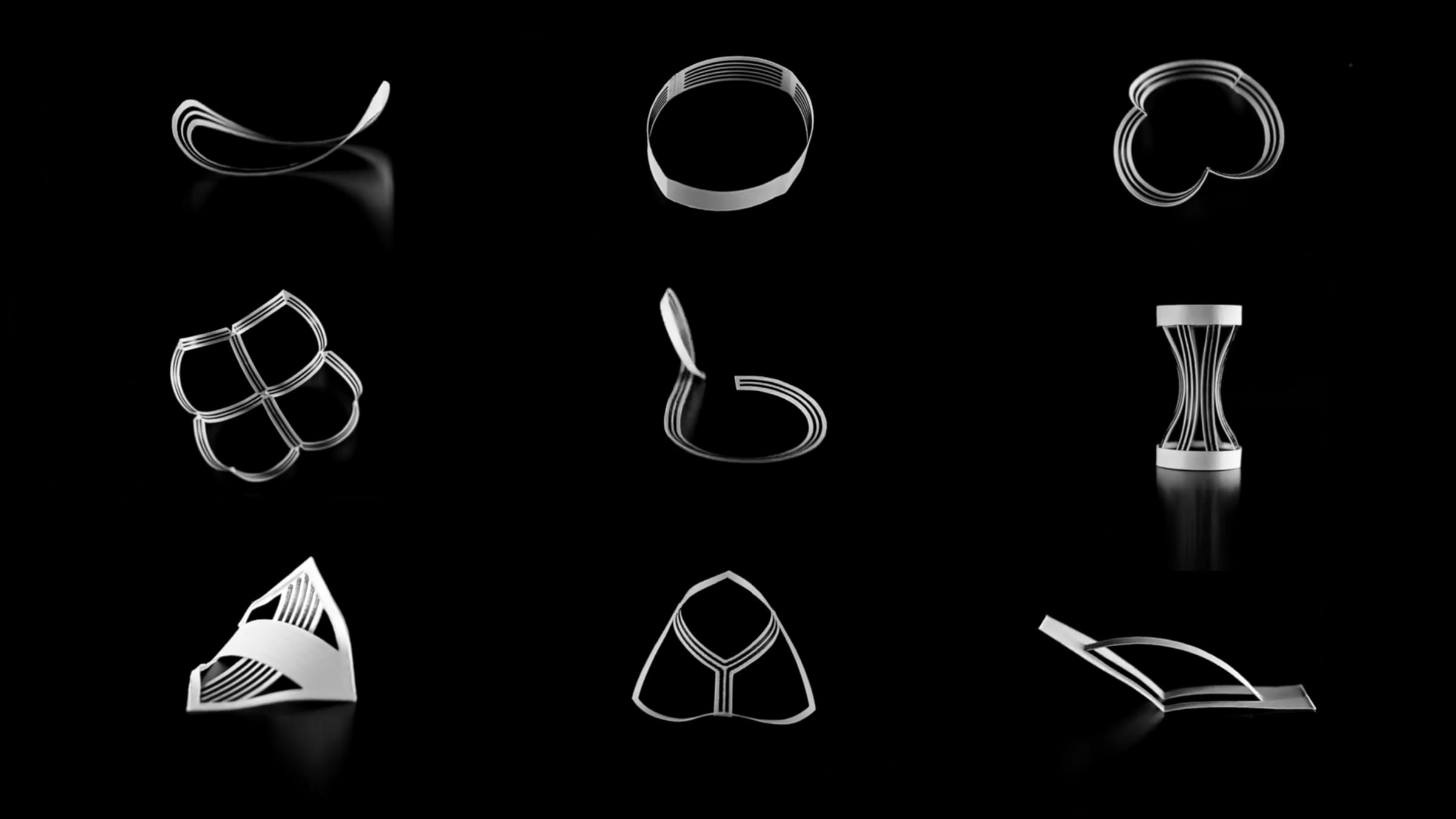

We present the design and exploration of a new electrical and reversible paper actuator printed by a FDM 3D printer. The actuator is composed of inexpensive materials, such as common paper and off-the-shelf thermoplastic printing filaments. The fabrication process is fast and straightforward, which requires a single layer printing with a desktop FDM printer. Our paper actuator can be easily embedded into everyday objects to enable new types of paper-based shape-changing interfaces that exhibit motion, transformation, and rich interactivities such as pop-up books, toys, origami robots, and lampshades.
Printed Paper Actuator is the project that achieves a low cost, reversible and electrical actuation and sensing method. This method that requires simple and easy fabrication steps enables our paper actuator to achieve different types of motion and even various electrical sensing abilities: touch sensing, slider, and self-bending-angle detection. We introduce a software tool that assists the design, simulation, and printing toolpath generation.
The Project Research Paper: Printed Paper Actuator: A Low-cost Reversible Actuation and Sensing Method for Shape Changing Interfaces
By Guanyun Wang*, Tingyu Cheng*, Youngwook Do, Humphrey Yang, Ye Tao, Jianzhe Gu, Byoungkwon An, and Lining Yao. (*Contributed Equally)
Morphing Matter Lab, Human-Computer Interaction Institute, Carnegie Mellon University
In the video:
27'-31': 6x speed; 31'-33': 10x speed;
33'-38': 7x speed (left); 10x speed (right);
38'-43': 8x speed (top left corner); 6x speed (top center); 6x speed (top right corner); 10x speed (middle left); 10x speed (middle center); 12x speed (middle right); 9x speed (bottom left corner); 10x speed (bottom center); 12x speed (bottom right corner).
