❇️ This Video #820 discusses the DCC/DCS switch found on MTH Proto 3, O-Gauge, 3-Rail Locomotives.
0:45 1 Switch on a Premier Loco
2:03 1b Chart Showing Years Locos Had the Switch
2:35 1c Jumper Wire inside Loco
3:12 2 MTH's Instructions for Adding Switch to a Railking Loco
4:45 3 An Added Switch on a Railking Loco
5:55 The End
As I understand it:
*1 Proto 1 locomotives were "sound-only"
*2 Proto 2 locomotives added DCS capability, but did not run on DCC.
*3 Proto 3 locomotives were introduced around 2011, and added the capability to run on DCC.

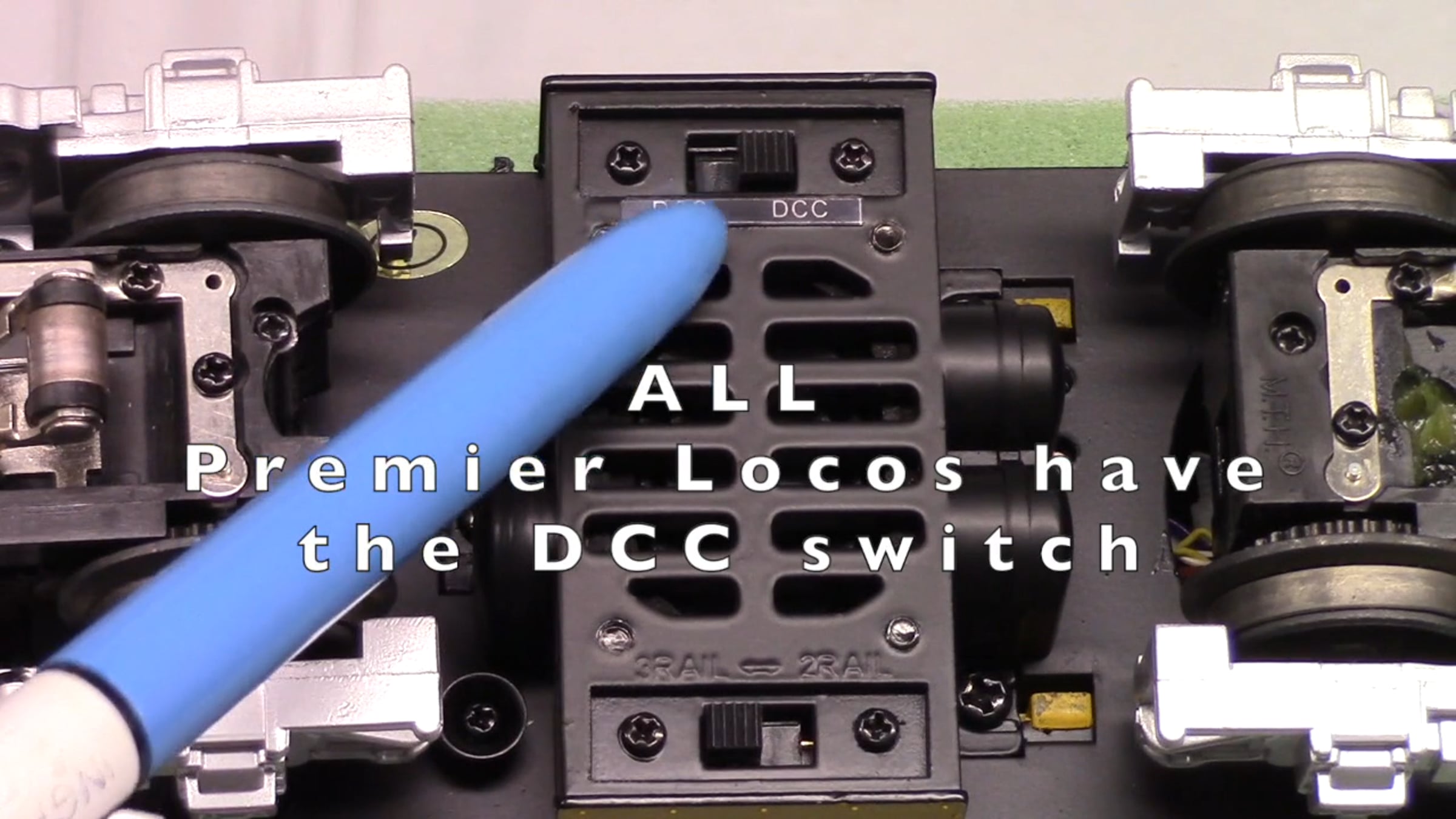

*4 All Proto 3 Premier locomotives have the DCC/DCS switch.
*5 The Proto 3 Railking locomotives from about 2011 to 2014 had the DCC/DCS switch.
*6 The Proto 3 Railking locomotives after 2014 no longer have the DCC/DCS switch.
*7 The Railking locomotives made after 2014 still have the DCC/DCS decoders, but in order to run the loco on DCC, you have to either add the switch yourself, or cut a jumper wire inside the loco.
*8 If you cut that jumper wire, the loco will then run on DCC, but not on DCS.
*9 Adding the switch allows you to essentially "disconnect" the jumper wire to run on DCC, or to "re-connect" that jumper wire to run on DCS.
� THE 2-RAIL/3-RAIL SWITCH:
* The Premier locos also have a 2nd switch that can be switched from "3rail" to "2rail", to operate on 2-rail track.
* This switch is visible on the lower side of the picture at the 2:18 point. (It's difficult to read in the video; the "3rail" position is to the Left, and you can see the switch is thrown that way in the video.)
* The Railking locos do NOT have this switch, and would be very difficult to convert to 2-rail operation.
