Samtec COM-HPC® Interconnects

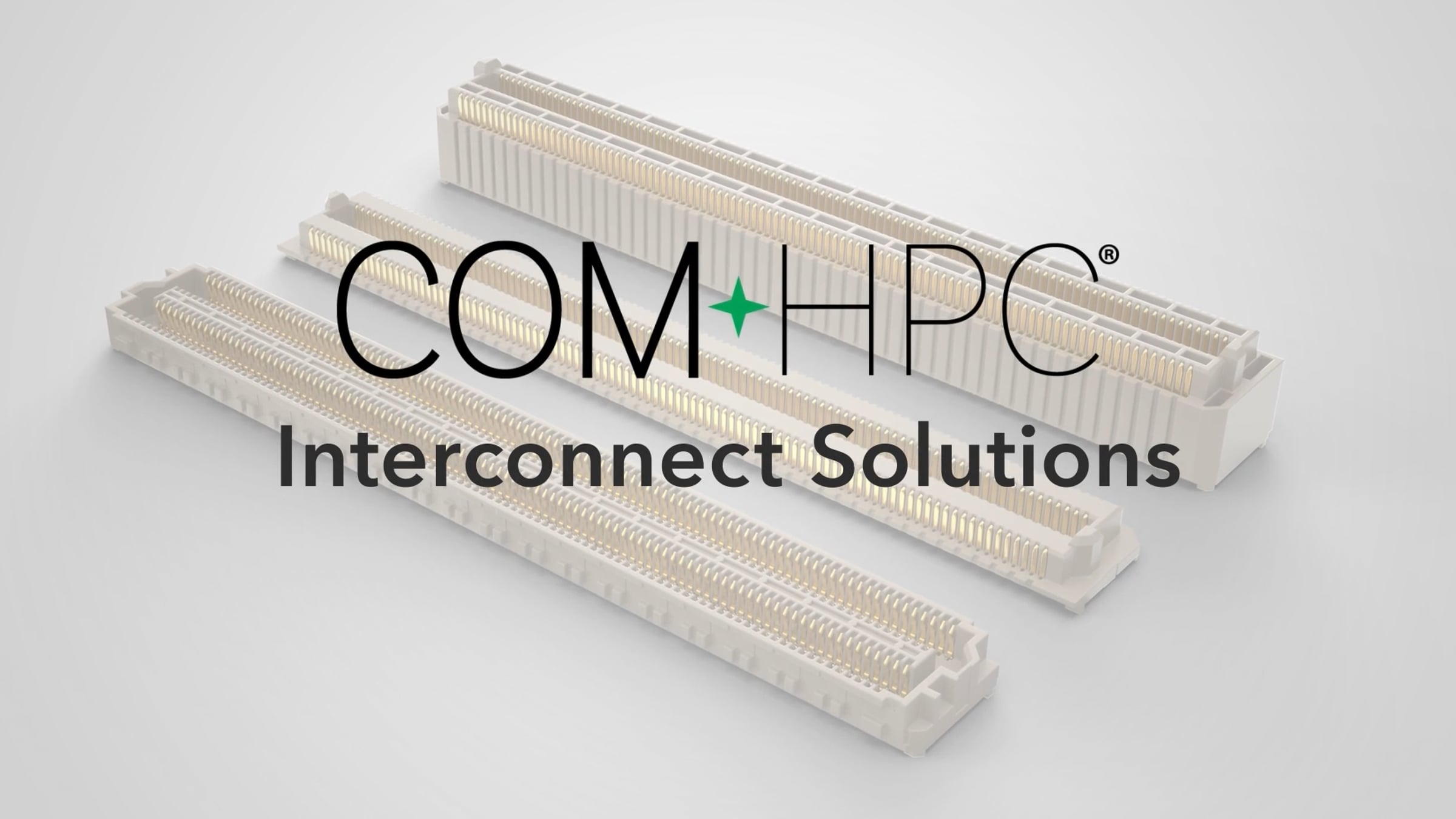

COM-HPC® Server and Client modules use a pair of 400 pin connectors (800 pins total) based on Samtec's AcceleRate® HP High-Performance Arrays. The new COM-HPC® Mini module removes one of the 400-pin connectors.

Samtec COM-HPC® connectors support existing and future interfaces such as PCIe® 5.0 (32 Gbps), PCIe® 6.0 (64 Gbps PAM4), 25 Gb Ethernet channels, 40 Gbps USB4/Thunderbolt, 80 Gbps DisplayPort™ signals, and other high-bandwidth interfaces. The connector pinouts are optimized for Mini, Client or Server modules as defined in the COM-HPC® specification.
