0:00 DEMO 6 - Run 4 Cars, No Stopping, No Repeating
2:37 Overview
4:16 DEMO 7 - Run 4 Cars, No Stopping, Keep Repeating
13:14 DEMO 8 - Run 3 Cars, No Stopping
20:47 The END of Part 1 (cont. in Pt. 2)
* This Video 832 Part 1/2 is at youtu.be/63QNRb7flK4 or vimeo.com/634127681 .
* Part 2/2 is at youtu.be/VS0RC8yE6fI or vimeo.com/634137862 .
* Photos & drawings are in Google Drive Album 832 at drive.google.com/open?id=1uACeVSTel3pnU8uoq5WEBSYiGKXgE2x0 .
Note: This video is a continuation of previous Video 831 (run 6 streetcars using 2 detectors and station stops) which is at youtu.be/In2GU4n7-dQ or vimeo.com/569789232 .
|~~~~~~~~~~~~~~~~~~~
| B. COMMENTS:
|~~~~~~~~~~~~~~~~~~~

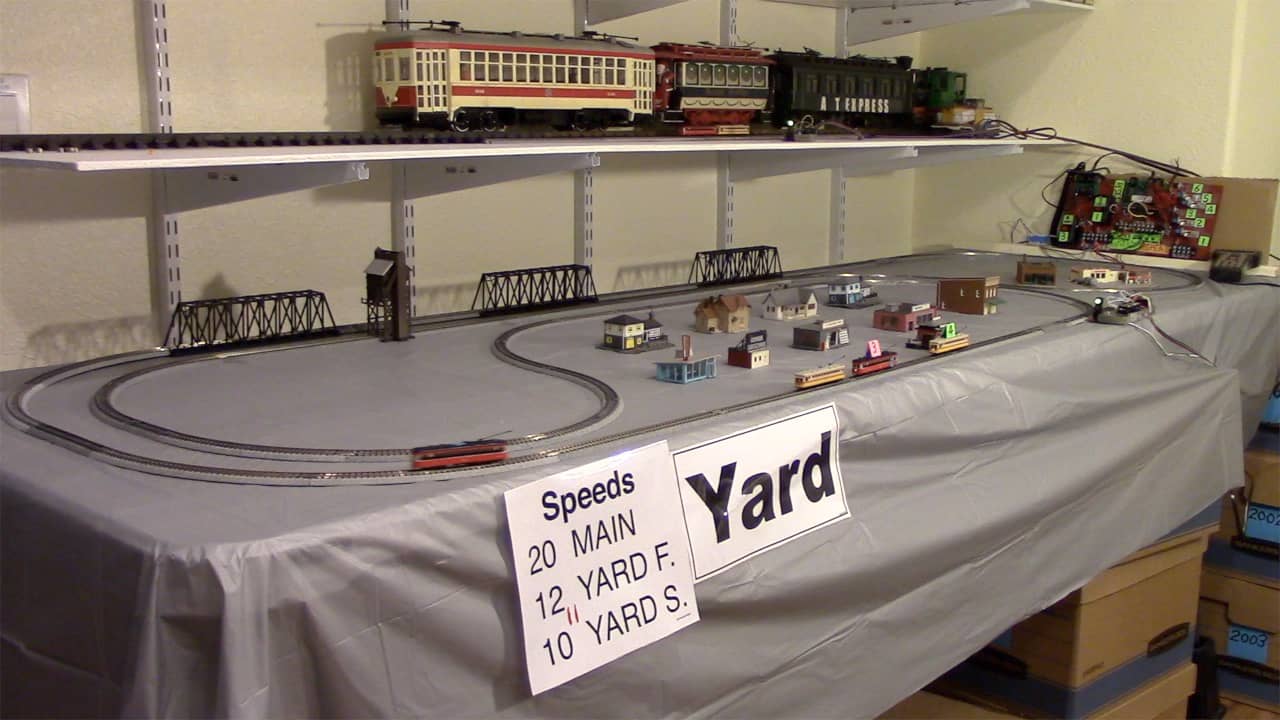

* This AutoControls.org Video 832 shows an NCE DCC Mini-Panel automatically controlling 4 N-ga. Bachmann Peter Witt DCC Streetcars on the same loop -- using no turnouts, no blocks, and a Z-Stuff infrared detector. They run CONTINUOUSLY without making any stops. (In the previous Video 831, they made 'station stops').
* HOW IT WORKS: The NCE Mini-Panel (Programmable Train Controller) keeps 1 of the streetcars running at 'Mainline Speed', and keeps the other 3 cars running slowly in the 'Yard' area. When the 'Mainline Car' passes the Z-Stuff infrared block signal detector, the Controller slows that car down to 'Yard Speed', and speeds up the front car in the 'Yard' from 'Yard Speed' to 'Mainline Speed'.
* This same method is also demonstrated using just 3 streetcars
* In Part 2, we then demonstrate the same method with 2 streetcars
* Finally, we show how to add 6 instructions to the 2-car program, to add a 'Station Stop'.
|~~~~~~~~~~~~~~~~~~~
| C. DIFFERENCES FROM PREVIOUS VIDEO 831:
|~~~~~~~~~~~~~~~~~~~
* This video is similar to the PREVIOUS Video 831, except:
* In Video 831 we used both 2 detectors and then a single detector. In both cases we had the cars making 'Station Stop'.
In this Video 832, the cars do NOT make Station Stops (except for the last demo, Demo 10).
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| D. RELATED AUTOCONTROLS.ORG N Ga. PLAYLISTS:
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
* Playlist A02 "N-Ga. DCC AutoControls, NO Turnouts":
. youtube.com/playlist?list=PLCzsbeo2HeKEEqgLoNdnbWbEer2juk-15
. AutoControls.02 N-Ga. DC Controls
* ALL AutoControl PLAYLISTS are on the Home Page at AutoControls.org , and a backup copy is on the 'Documentation' site at autocontrols.wordpress.com/playlists/
~~~~~~ E. OTHER LINKS: ~~~~~~
* The O Ga. RR Forum DCC discussion forum (all scales): ogrforum.ogaugerr.com/forum/dcc-forum-1
~~~~~~ F. OTHER NOTES: ~~~~~~
Hashtags: #AutomaticModelTrainControl #AutomaticTrainControl_DCC #AutomaticTrainControl_Ngauge
Introductory music: iMovie Jingle "Elysium Short".
* This iMovie10 video was uploaded by JamesIngram.net . (Description modified 10/27/2020.)
