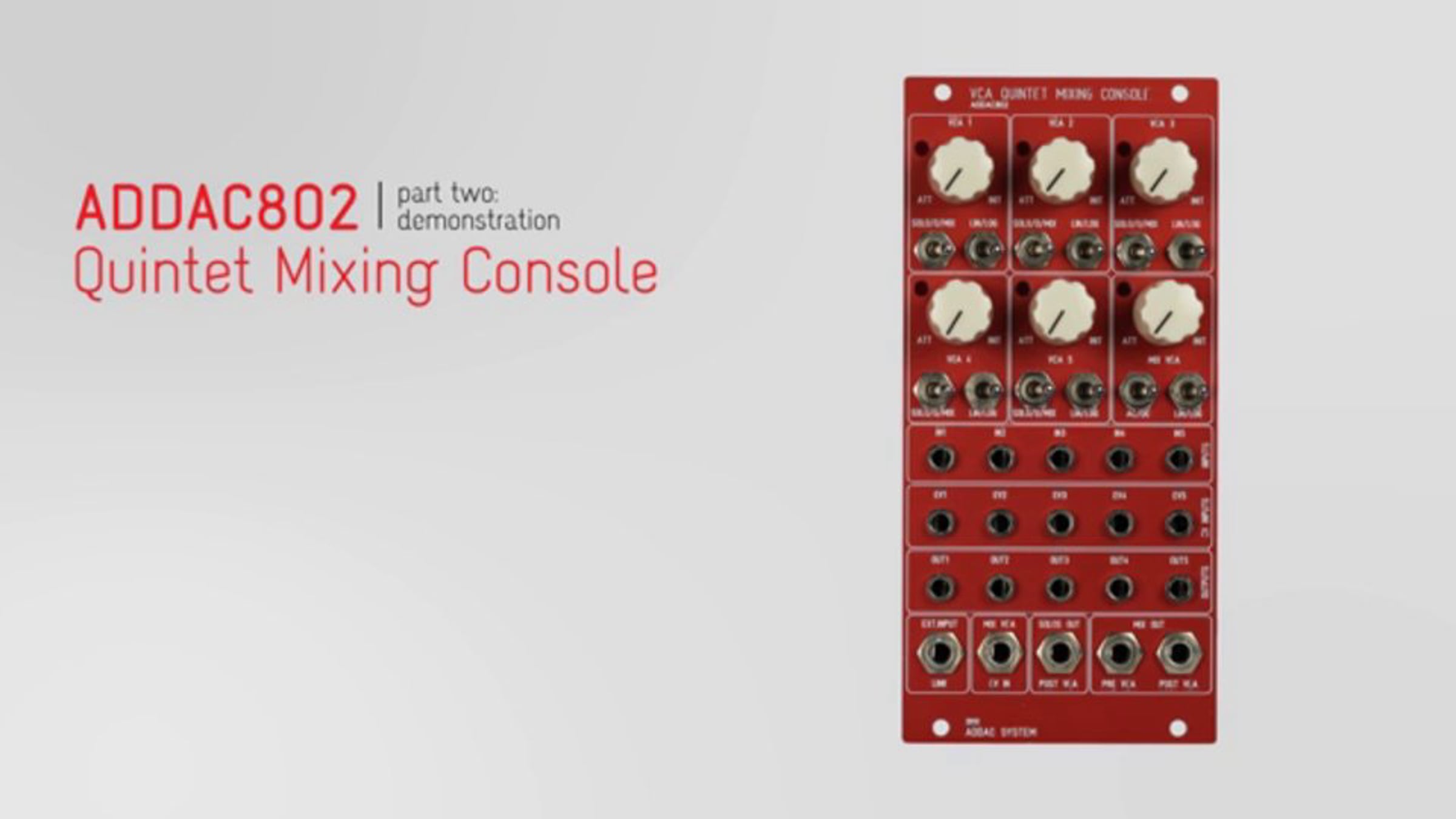

ADDAC802 VCA Quintet Mixing Console
5 Channel Mixer
1 Master Output
External input into the Mix channel for daisy chaining.
2 independent mixing paths, Solo and Mix
Mix Output includes a 6th VCA with Pre and Post outputs
Each of the 5 channels has:
. VCA with initial Knob
. Monitor LED
. Independent output
. Linear or logarithmic control
. Solo/Off/Mix switch that routes their audio to the Solo Channel or the Mix channel. In Off position the VCA does not go to the outputs.
All 5 VCA's can be used separately for different sources (audio or cv) or mix in 2 different chains.
. 1 Pre Master VCA output
. 1 Post Master VCA output
. 1 Solo output
The Solo line is also intended for Pre Listening purposes, using this output to connect your headphones through some headphone amplifier module.
