VIGSDIAC Vector Inversion Oscillator with DIAC

Name: VIGSDIAC Vector Inversion Oscillator with DIAC
Uploaded: 2014-04-16T13:00:52+00:00
Duration: 1 min 45 s
Channel: Sven Strubinski

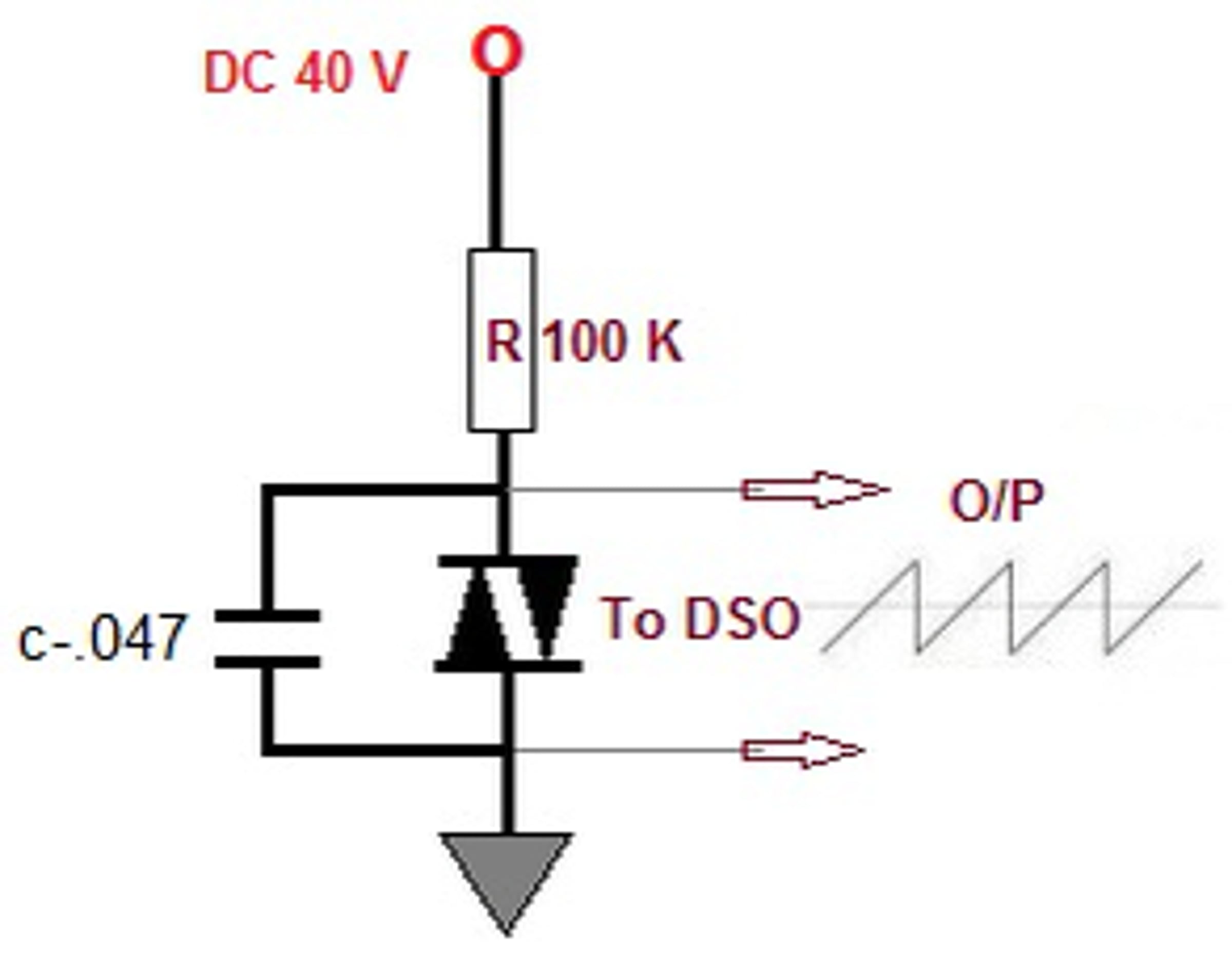

Description: Vector Inversion Generator, Rose et al., oscillating through negative resistance oscillator made from a DIAC circuit similar to neon bulb relaxation oscillator, higher amperage with diac, oscillating at about 32V.

Vector Inversion Generator, Rose et al., oscillating through negative resistance oscillator made from a DIAC circuit similar to neon bulb relaxation oscillator, higher amperage with diac, oscillating at about 32V.
